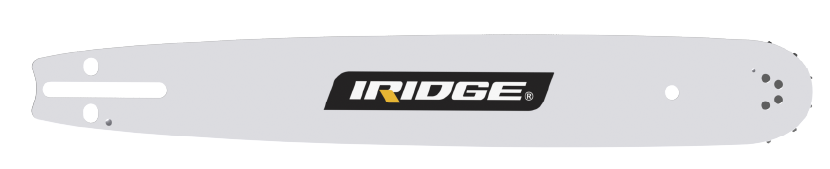

The multi-layer structure design of the laminated guide bar is one of the core aspects of its performance optimization, especially in terms of balancing rigidity and shock absorption performance. This balance requires comprehensive consideration of material selection, inter-layer combination, manufacturing process and actual application requirements. The following is a detailed analysis of this issue:
1. Basic relationship between rigidity and shock absorption performance
Rigidity: Mainly determined by the overall elastic modulus of the guide bar, it is usually required that the guide bar maintain a stable shape and avoid deformation under high load and high speed operation.
Shock absorption performance: Involves the ability of the guide bar to absorb and disperse vibration, and is usually required to reduce the vibration transmission caused by mechanical movement or impact.
These two properties are often contradictory - increasing rigidity may reduce shock absorption performance, while improving shock absorption performance may weaken rigidity. Therefore, the design needs to achieve the best balance between the two through the reasonable configuration of the multi-layer structure.
2. Key factors in multi-layer structure design
(1) Material selection
Different materials have different mechanical properties. Reasonable matching can achieve a balance between rigidity and shock absorption performance:
High-strength metal layer (such as steel, aluminum alloy): Provides the main rigid support to ensure that the guide bar is not easy to bend or deform under high load conditions.
Flexible material layer (such as resin-based composite materials, rubber): used to absorb vibration energy and reduce vibration transmission.
Intermediate transition layer (such as fiber-reinforced composite materials): connects the rigid layer and the flexible layer, plays a buffering and coordination role, and enhances the stability of the overall structure.
(2) Interlayer arrangement
The arrangement order of the multilayer structure has an important impact on the performance:
Rigid outer layer + flexible inner layer: high-strength materials are arranged in the outer layer and flexible materials are arranged in the inner layer. While ensuring the external rigidity, the inner layer can be used to absorb vibration.
Alternating stacking design: By alternately arranging rigid and flexible material layers, a "sandwich" structure is formed, which can provide sufficient rigidity and effectively disperse stress and vibration.
Gradient structure: gradually change the rigidity of the material from the outside to the inside, so that the rigidity and shock absorption performance transition smoothly, avoiding interface stress concentration due to excessive material differences.
(3) Thickness ratio
The thickness ratio of each layer of material directly affects the overall performance:
If the thickness ratio of the rigid layer is too high, the shock absorption performance will be insufficient, while if the thickness ratio of the flexible layer is too high, the overall rigidity will be weakened.
Through finite element analysis (FEA) or experimental testing, the thickness ratio of each layer can be optimized to find the best balance between rigidity and shock absorption performance.
(4) Adhesive selection and interlayer bonding
The selection of interlayer adhesive is crucial to the overall performance of the multilayer structure:
The adhesive needs to have good shear strength and peel resistance to ensure a strong bond between the layers.
The use of adhesives with damping properties (such as epoxy resin + toughening agent) between the flexible layer and the rigid layer can further improve the shock absorption performance.
3. Influence of manufacturing process
The precision and consistency of the manufacturing process have a direct impact on the performance of the multilayer structure:
Hot pressing: By precisely controlling the temperature, pressure and time parameters, ensure that the materials of each layer are tightly bonded and avoid bubbles or delamination.
Surface treatment: Surface roughening of the rigid layer (such as sandblasting or chemical etching) can improve the adhesion of the adhesive.
Curing process: Reasonable curing time and temperature can ensure that the adhesive is fully cured, thereby improving the interlayer bonding strength.
4. Optimization strategies in practical applications
Depending on the specific application scenario, the following strategies can be used to further optimize the balance between rigidity and shock absorption performance:
(1) Dynamic load analysis
Use finite element analysis (FEA) to simulate the stress distribution and vibration mode of the guide plate under actual working conditions.
Adjust the material combination and layer thickness ratio according to the analysis results to optimize the structural design.
(2) Vibration test and feedback
Perform vibration test on the manufactured guide plate to evaluate its rigidity and shock absorption performance.
Iterate the design based on the test results, such as increasing the thickness of the flexible layer or adjusting the adhesive formulation.
(3) Customized design
Develop a dedicated laminated guide plate design scheme for the needs of different industries (such as textile machinery, woodworking machinery, etc.).
For example, in high-speed textile machinery, more attention may be paid to shock absorption performance; while in heavy equipment, higher rigidity is required.
The multi-layer structure design of the laminated guide plate needs to comprehensively consider material properties, interlayer combination method, manufacturing process and actual application requirements. A good balance between rigidity and shock absorption performance can be achieved by rationally selecting materials, optimizing interlayer arrangement and thickness ratio, and improving bonding process. In addition, with the help of advanced simulation technology and experimental testing methods, the design can be further optimized to meet the needs of different application scenarios.
